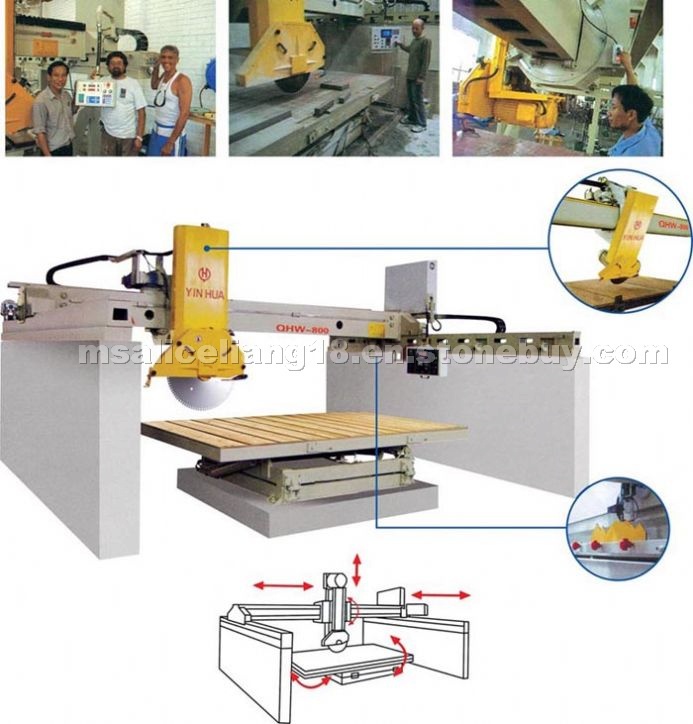

QHW-800(YHQQJ-36D) Infrared Fully Automatic Bridge

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1459509

• Place of Origin:

  China
• Applications:
  This machine is provided with fully automatic girder displacement positioning and microcomputer control, and is very high in automation level. The main parts and components of the machine (such as frequency converter, magnetic rule, laser reticule apparatus.) are all of imported good-quality materials, thus ensuring high precision, stable performance, good adaptability as well as high reliability of the whole machine. It is particularly applicable for cutting valuable and large stone plates.
  Features of QHW-800 Infrared Fully Automatic Bridge Type Edge Cutting Machine
  ● Controlled by PLC, operated expediently、accurately and stably
  ● The support guide way adopts the imported linear guide way to make sure high precision and long life.
  ● The main parts and components of the machine (such as frequency converter, magnetic rule, laser reticule apparatus.) are all of imported good-quality materials, thus ensuring high precision, stable performance, good adaptability as well as high reliability of the whole machine.
  ●Bridge movement (Y-Axis) by means of precise linear guide way, Z axis movement by lead screw
  ●Manual mode or automatic multiple cutting mode for you to choose(programmable)
  ●Laser system for material alignment
  ●One set can be loaded in one 20 feet container.

  Common station: concrete foundation, table rotate 90 degree; We can make to order: steel structure, table rotate 0, 45, 90, 135 degree. Except that, the D type can add profiling function to order.

  Specifications
  NameunitQHW-800(YHQQJ-36D)
  Blade diametermmΦ800 mm
  Blade up/down strokemm400
  Main motor kw18.5
  Feeding motor kw3
  Slicing motorkw1.1
  Motorized blade tilt angle0°～ 45°
  Worktable size (Max. cutting size)mm3200×2000 mm
  Worktable rotation angle (by hydraulic)90°or 360°
  Worktable upturning angle0°～ 85°
  Dimension (L×W×H) mm6300×4700×2800
  Weight Kg6000
