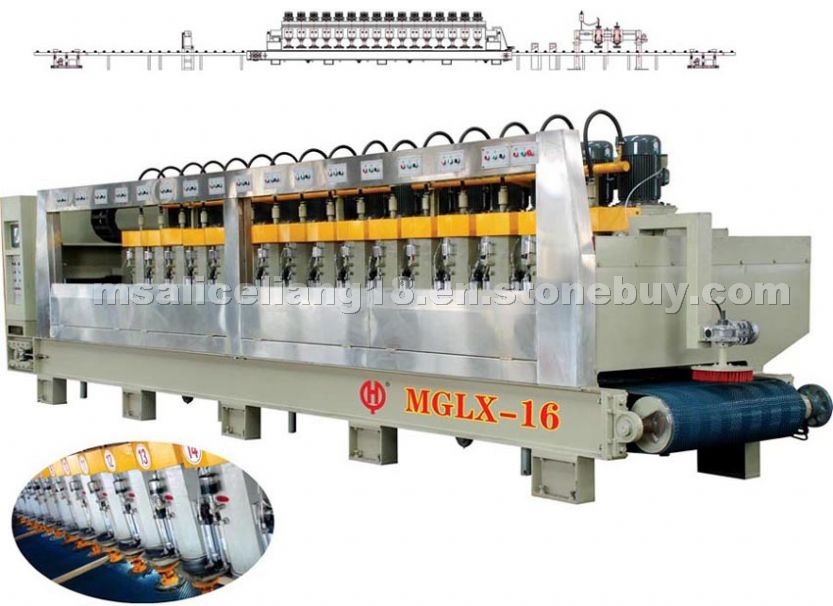

MGLX-16A Polishing Machine For Granite Slab

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1432113

• Place of Origin:

  China
• Features of MGLX-16A Polishing Machine For Granite Slab
  It adopts PLC terminal control system; Operator can set the parameters by the programmable controller with LCD screen. It is equipped with trouble alarm and abrasive block consumption alarm systems. It is qualified for continuous grinding and polishing granite stone slabs. The speeds of work piece conveyor and cross beam adopt converters to adjust their speed. Its processing width and working pressure of grinding heads are adjustable. Each grinding head can rise and fall automatically following the work piece movement. The machine also has the function of avoidance. Meanwhile, the main motor of this machine is only 7.5kw with 16 pcs and it uses the common round abrasive, so that it has the high efficiency energy saving and environmental protection function.
  We have sold this kind of machine to some factories in China. After long-time inquiry, we have got the probable efficiency data.
  Specifications
  NameQuantity
  Max. polishing width600mm-1250mm
  No. of heads16 pcs
  Useful working thickness13-50mm
  Useful abrasive Resin abrasive
  Speed of conveyer belt0-2200mm
  Frequency of front-back swing30 times/m( go and back)
  Main power7.5kw-16
  Journey of air cylinder125mm
  Feeding wheel power1.1kw
  Swing motor power2.2kw
